Air Inlet Baffle Removal

Remove Left side cover
See Side cover removal

Remove Battery cover
See  battery cover removal

Remove Front engine cover
See Front engine cover removal

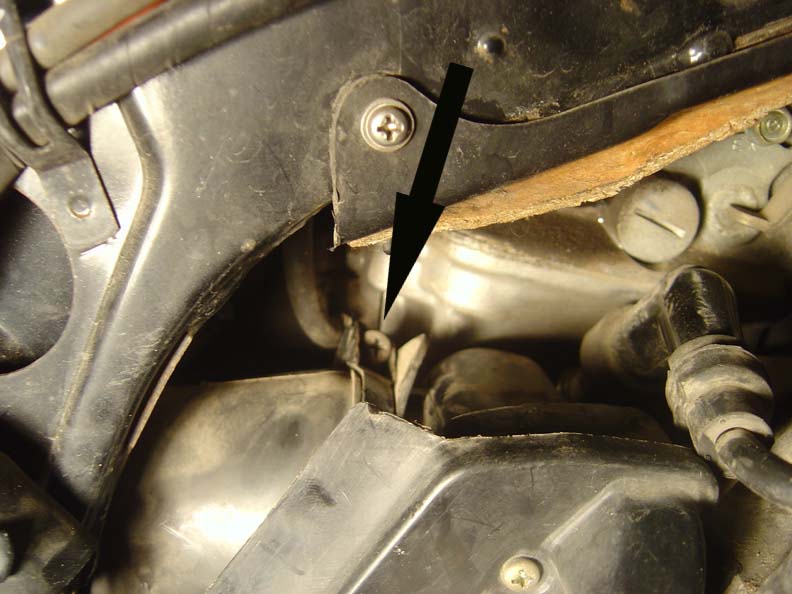

Remove screw at air box

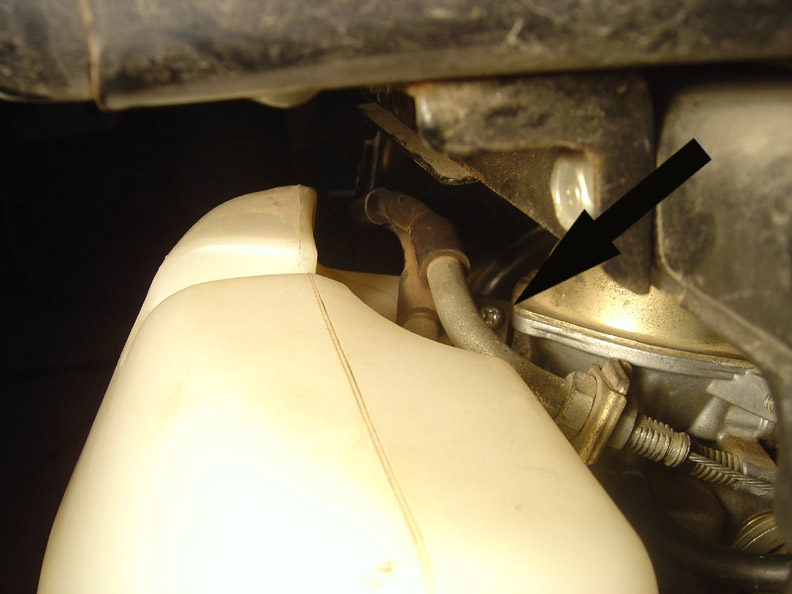

Remove screw at carb inlet

Pull baffle away from engine compartment

Reverse to install
