Moveable Drive Face Removal

Remove Drive belt
See Belt Replacement

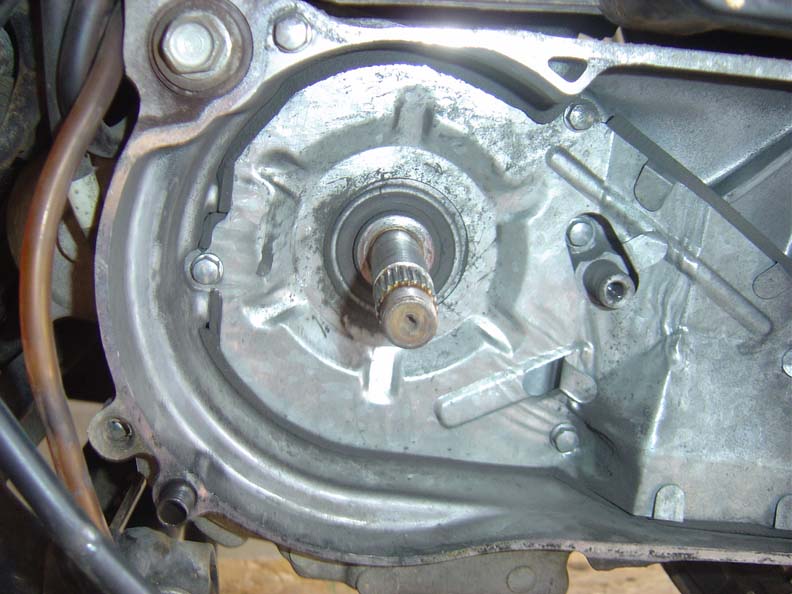

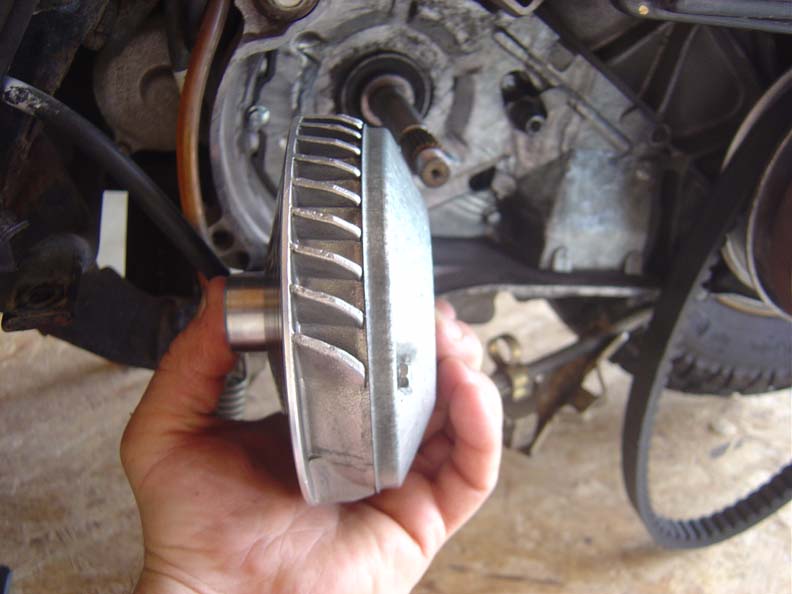

Grab Boss and pull assembly from crank shaft

To install, Randy says in tech tip #2 to be sure not to install the boss first.

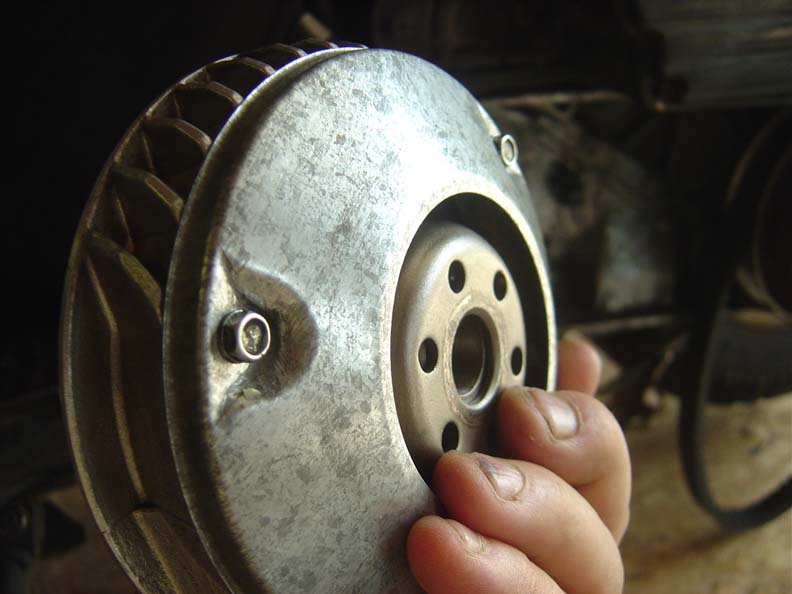

I Held the ramp plate with my fingers and the boss with my thumb so the plate does not move inside. Then placed it on the crank shaft.

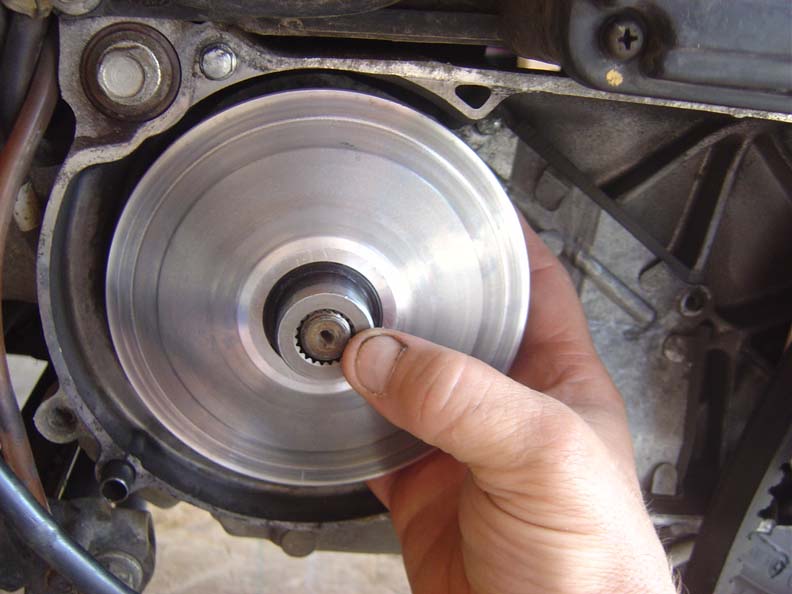

Then I pushed the BOSS ONLY until it bottomed out
