Belt Replacement



If you are using a Gates 6012 belt, it is wider.
Check out this site for rubbing issues
http://www.helixscooter.com/gates_belt.htm



Remove Left Crankcase cover
See Crankcase Cover Removal

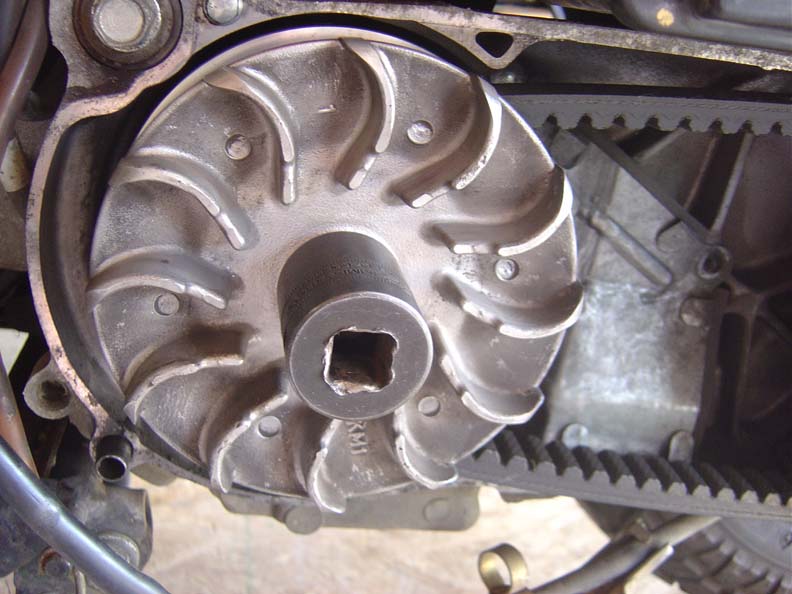

Remove Drive face nut with a 22mm socket

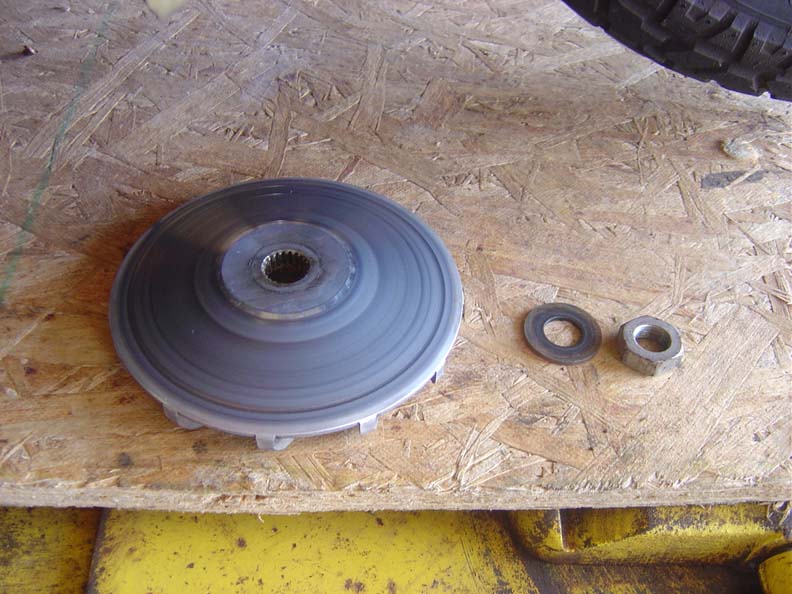

Slide Drive face off

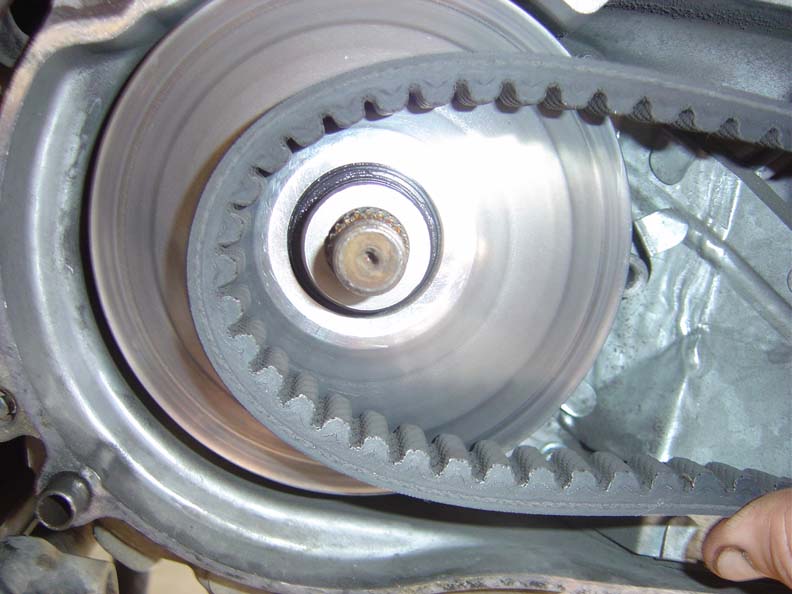

Pull belt from driven pulley
Inspect for irregular wear

Reverse to install

Put belt around the driven pulley

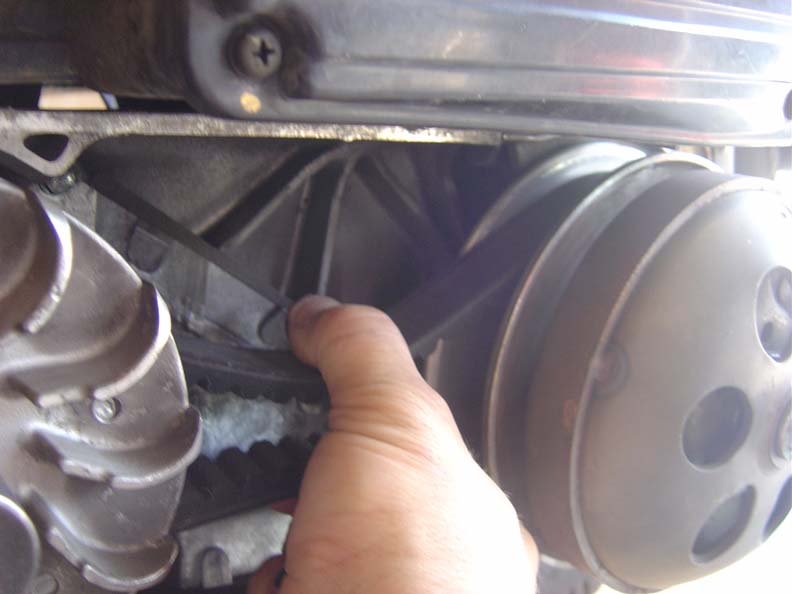

Hold belt while installing drive face

Tighten nut by hand until it touches the belt

Squeeze belt to widen the driven pulley faces

Apply oil to the threads and mating surface of the nut and torque nut to
58ft-lb
There are a couple of different ways to hold the cover while applying
torque

Belt after installation
