Removal Air inlet Baffle
See Air inlet baffle removal

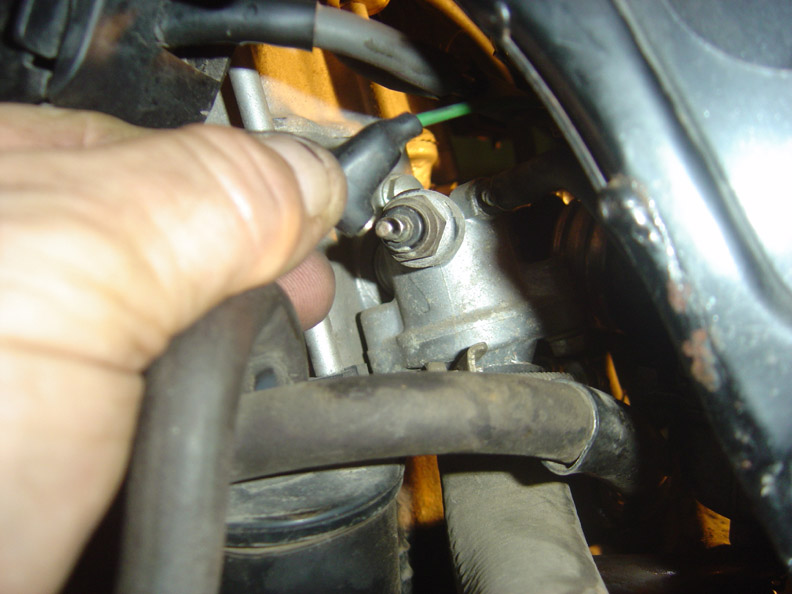

Disconnect Temperature sensor connector

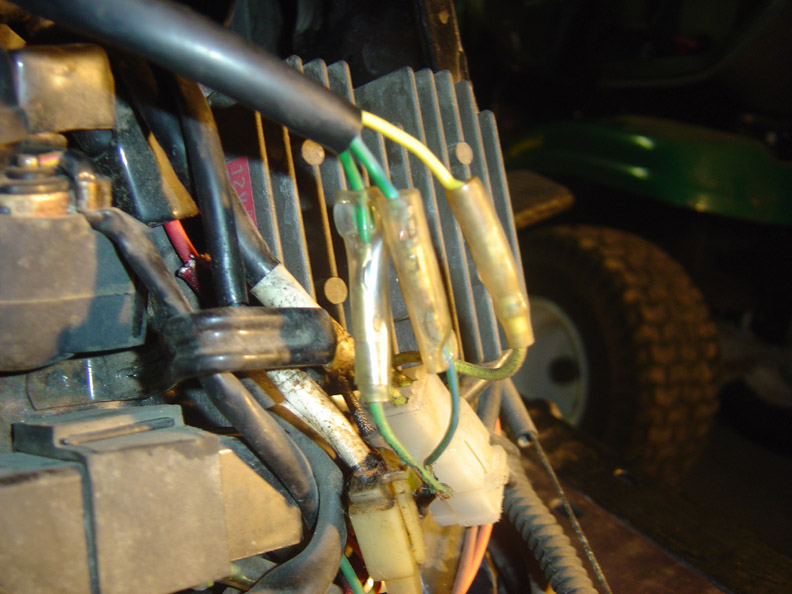

Disconnect 3 wires for carb

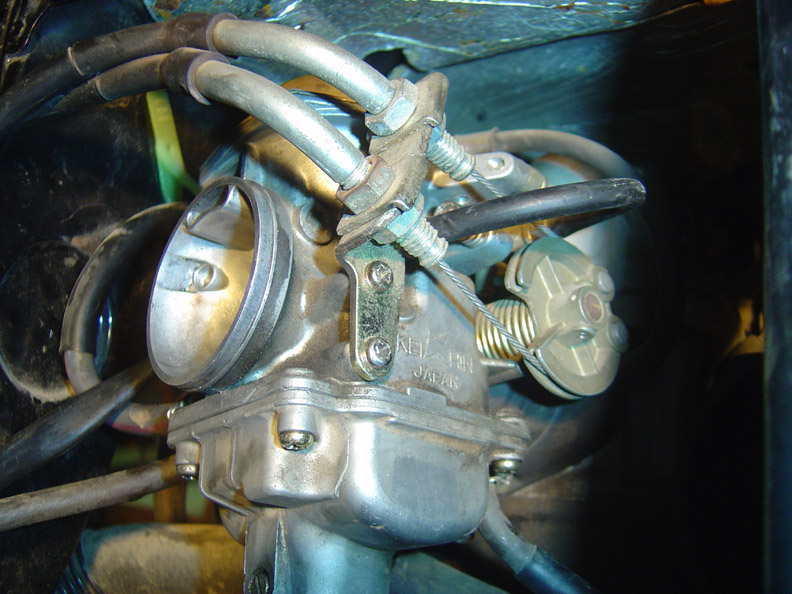

Remove 2 screws holding Throttle cable bracket

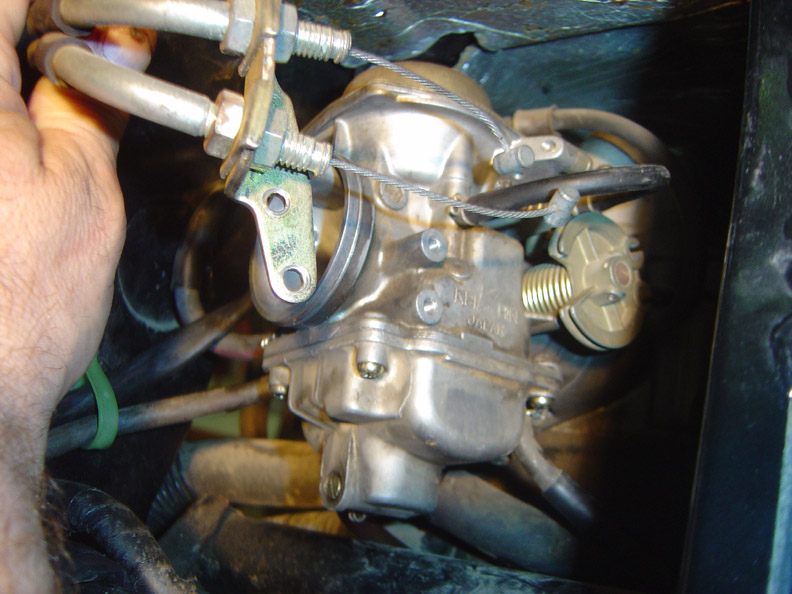

Use the slack to unwrap and unhook cable ends

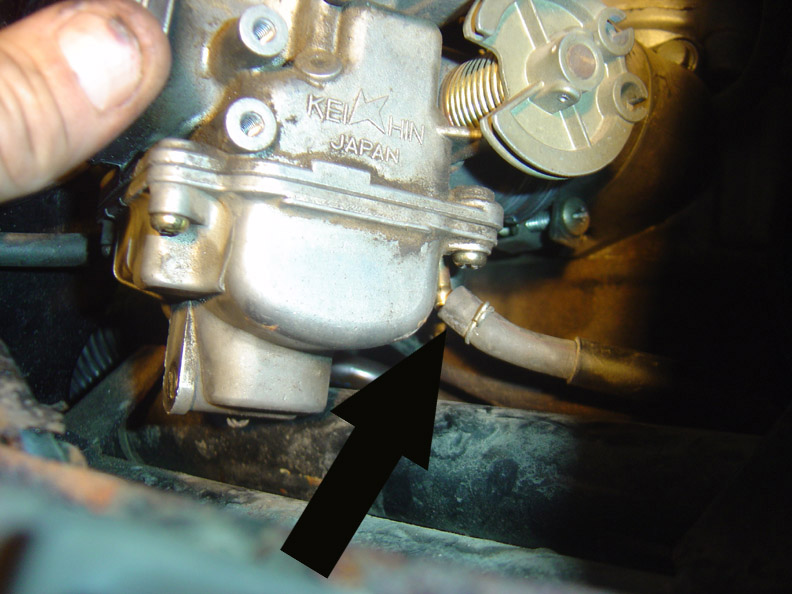

Disconnect vac hose from underneath

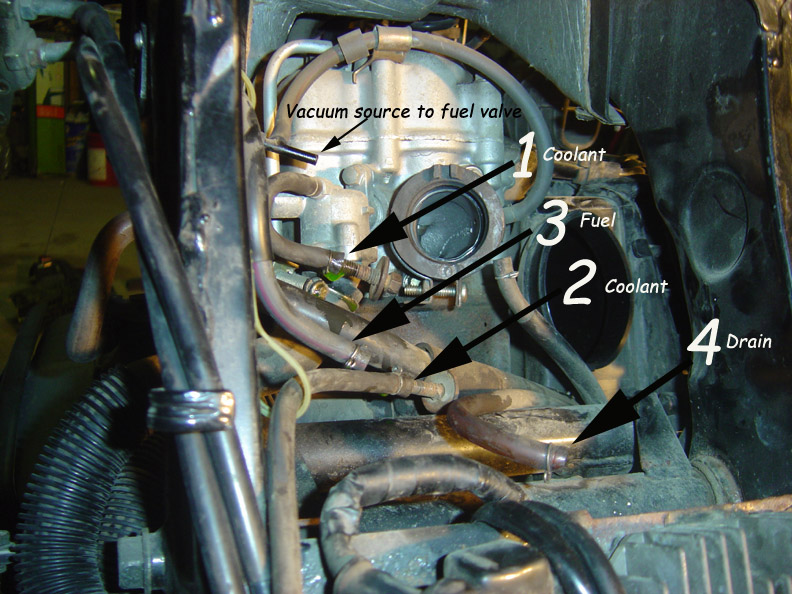

Remove 4 hoses from right side

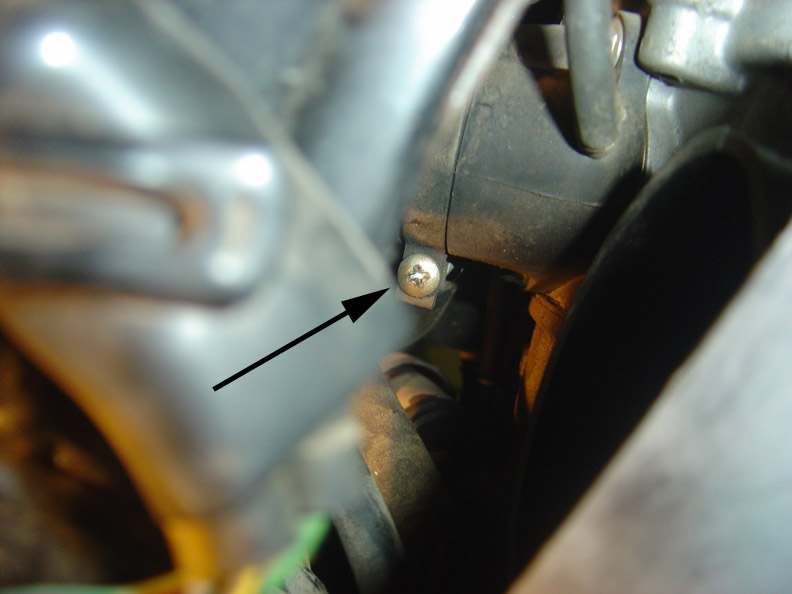

Remove screw at engine inlet

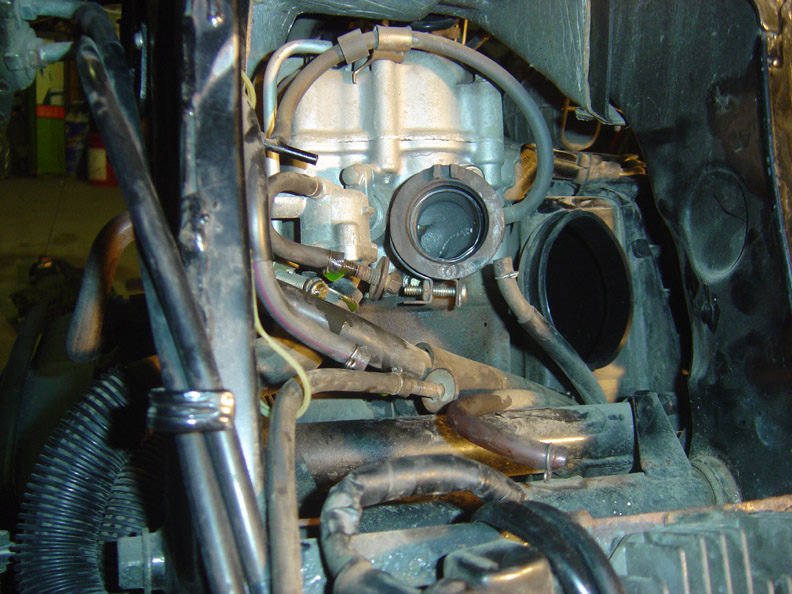

Hoses after removal


Reverse to install
