Battery Cover Floor Mats Side Rails Pillion Steps Front Cover over Engine Side Covers
Remove Battery Cover See battery cover removal
Remove Floor mats See Floor Mat removal

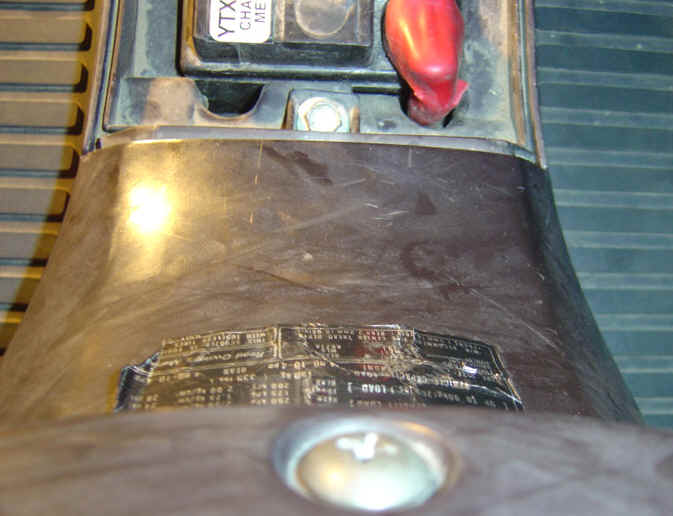

Remove Bolt under battery cover

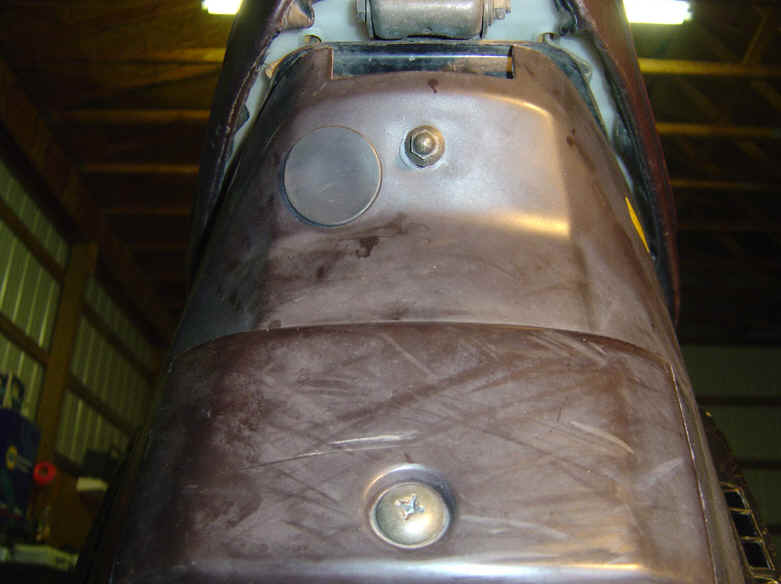

Remove bolt below seat
lift up on foot mat to gain access to locks You may need to use a flat blade screwdriver to separate them at these points
Lift off
