Pillion Steps

Remove Floor mats
See  Floor Mat removal

Remove Side Cover
See  Side Cover Removal

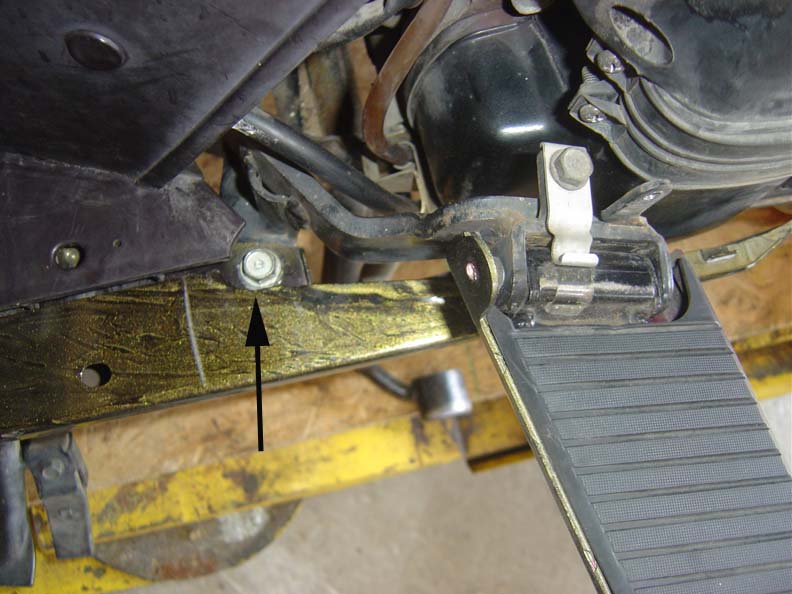

Remove bolt from under floor mat

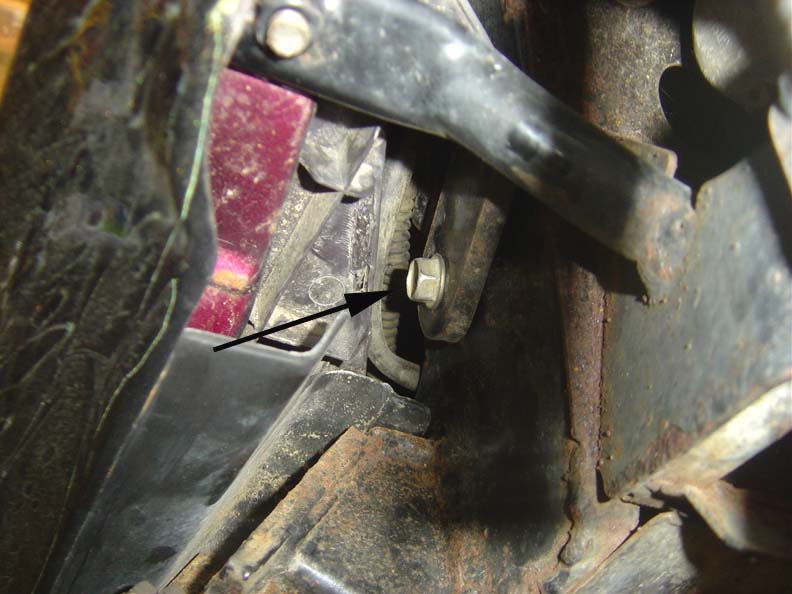

Remove Bolt from under side rail

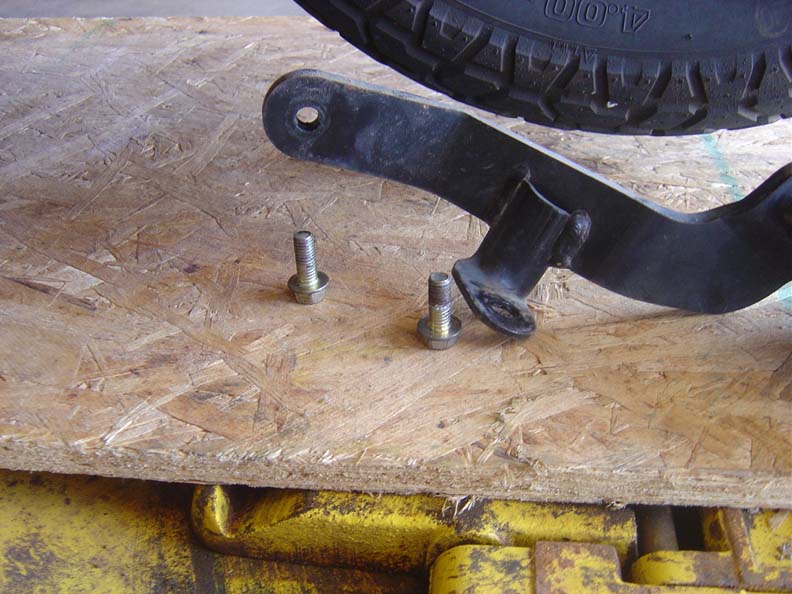

This is what you will have

Reverse to install

Remember to start both bolts and finger tighten before applying torque
